The T-Komp 500 has a unique design which offers a modern take on the old vari-mu ratio curve. The ratio is progressive and increases with the threshold level.

To make the TK Audio T-Komp 500 more useful it has two ratio ranges. The first one goes up to 20:1, perfect for instrument tracking and smashing drums etc., the second, 2:1, is a more narrow range which makes it more suitable for soft compression. The RMS detector has five settings, four from fast to slow where number four, the slowest, is similar to the old 160VU. The fifth position is a program dependent adaptive mode.

The TK Audio T-Komp 500 has a unique design which offers a modern take on the old vari-mu ratio curve.

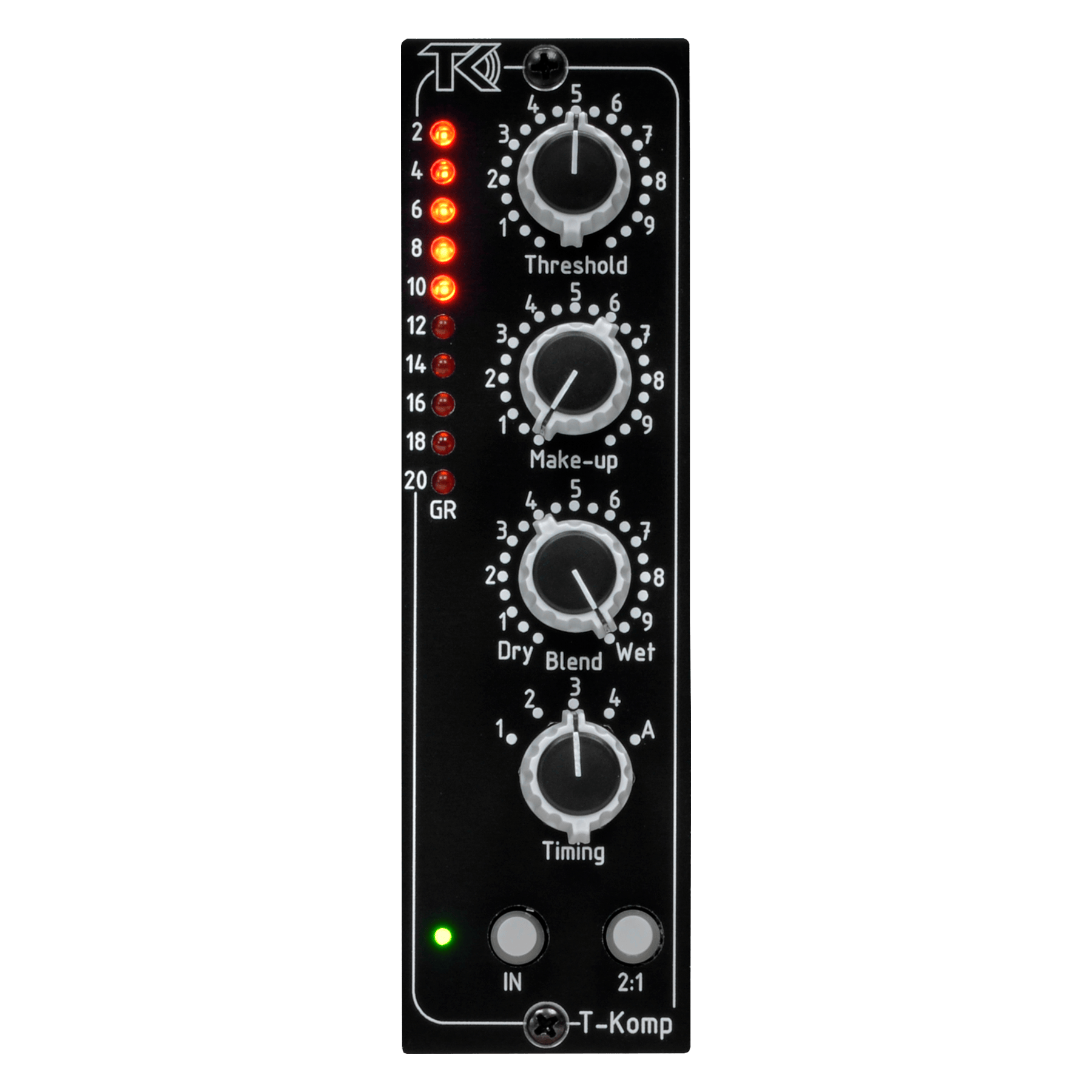

Features

• Threshold
  Make-up gain: 0 to +20dB
  Blend control: from dry to wet
• Average timing:

1. 1. 1mS / 40mS (most useful for peak limiting)
   2. 5mS / 200mS
   3. 10mS / 400mS
   4. 25mS / 1000mS (similare to the old 160vu)
   5. Adaptive mode

• The attack and release are locked in relationship to each other.
• In: compression in/out
  2:1: selects a more narrow ratio range
  Gain reduction meter
