The original drivers for the original sound installed in the Avantone CLA-10

Since the “white cone” studio monitor was discontinued, the supply of aftermarket components have become more expensive and less available. Avantone Pro has created a near exact recreation of the original drivers. Using our global resources and decade of experience in driver construction, we have reproduced the components faithfully. Updating the materials to comply with modern environmental requirements.

The Avantone CLA-10 AV10-MHF tweeter dome went through a difficult engineering process. To get the exact phenolic resin doping to match the original performance curve. The Avantone CLA-10 AV10-MLF woofer uses custom tooled mechanical parts that mirror the original. We worked closely with one of the original vendors to get the exact same stiffness and weight. The only difference from the original is that we use a pressed cone as opposed to a lapped. This allows for tighter matching in every cone we build, meaning this is the first time matched pairs have been available!

Both replacement drivers are physically and dimensionally exactly the same as the originals and are “bolt in” hassle-free installation.

Available for the first time in an active configuration

One of the most common questions asked about the Avantone CLA-10 A’s is which version of the originals are they based on, and the answer is: all of them! The Avantone CLA-10 A’s have an all new “VTPC” knob or “Variable Tissue Paper Control.” This VTPC allows you to simulate anything from the Vertical “m” model to the horizontal “Studio” model and everything in between. No more debate over the best tissue paper to use — VTPC has you covered!

Avantone Pro decided to stay traditional with a linear power supply implementing a massive old school toroidal transformer in order to maintain the legacy sound. The Avantone CLA-10 A uses a monolithic Class AB amplifier. At low power, THD is a phenomenal 0.005%; at rated load it is 0.1%, yielding excellent performance compared to class D amps. The system yields a rock solid 200WRMS.

The Avantone CLA- 10 monitor family

We’ve worked tirelessly to bring this classic monitor system back to the world, but it took more than just recreating a single speaker. A tremendous amount of attention has been put into every detail: matching the original MDF and wood veneer for the cabinet, matching the original winding dimensions/value/dc resistance of the inductors, profiling the most popular amplifier pairings of the original, just to name a few things. All of this development has culminated into a slew of monitor solutions.

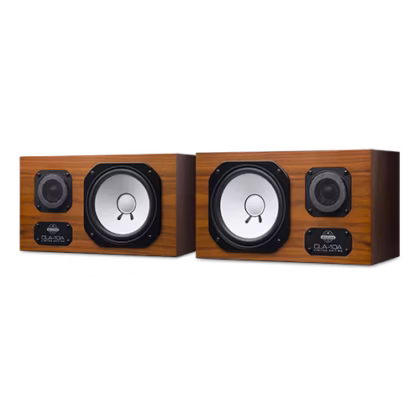

• The Avantone CLA-10 Passive, CLA-10 Active and CLA-10A Limited Edition: the iconic “white cone” monitors, in both passive and active configurations.
• The CLA-100 and CLA-200: reference amplifiers with the perfect voicing to compliment the Avantone CLA-10 and original “white cones.”
• AV10 MHF and AV10 MLF: now available for the first time in decades as direct replacements for the original.
• AV10 MXO: replacement crossover for original Yamaha™ NS10M™ studio monitors.

Don’t forget to take a look at our other Avantone products!

Visit the Avantone Pro website for more info.
